Details
Fiberglass Stitched Mat

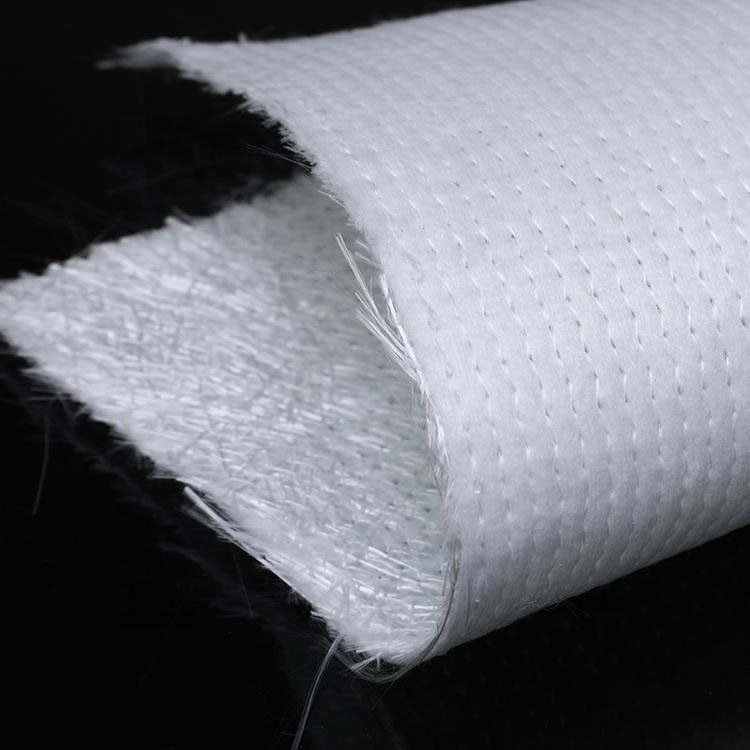

Surface Veil Stitched Combo Mat is an advanced composite material designed to provide both surface enhancement and structural reinforcement in a single product.
The mat can be combined with nonwoven surfacing veil (glass surfacing veil in wet processing), Polyester Veil, Polypropylene (PP) cores, or carbon surfacing veil for enhanced performance stitched glass fiber combination mat.
Product Feature
● Reduce laying workload and improve production efficiency
● No chemical adhesive,the felt is soft and easy to set, with less hairiness
● Solve the problem of easy break and wrinkle when the glass fiber surface mat is formed separately
● Effectively improve the appearance of the products and increase the resin content on the surface of the products
Specs & Technical
| Product Code |
Total Weigh
（g/m²）
|
Chopped Strands
(gsm)
|
Stitching Yarn
(gsm)
|
Fiberglass Veil
(gsm)
|
Carbon fiber Veil
(gsm)
|
Polyester Veil
(gsm)
|
| ENC300S30 | 330 | 290 | 10 | 30 | ||
| ENC300C20 | 320 | 290 | 10 | 20 | ||
| ENC300P40 | 340 | 290 | 10 | 40 | ||
| ENC380S30 | 410 | 370 | 10 | 30 | ||
| ENC380C20 | 400 | 370 | 10 | 20 | ||
| ENC380P40 | 420 | 370 | 10 | 40 | ||
| ENC450S30 | 480 | 440 | 10 | 30 | ||
| ENC450C20 | 470 | 440 | 10 | 20 | ||
| ENC450P40 | 490 | 440 | 10 | 40 |
Applications
Surface Veil Stitched Combo Mat can be mainly applied in pultrusion, resin transfer molding, continuous board making, and other forming processes.
Packing Method
Each roll is wound onto a paper tube which has an inside diameter of 76.2mm(3''). The roll outside diameter is approximately 280mm. Each roll is wrapped up in plastic film and then packed in a carton. The rolls are stacked horizontally or vertically onto pallets. All pallets are stretch wrapped and strapped to maintain stability during transport.
Storage
Fiberglass products should be stored in its original packaging in a dry, cool and water-proof place. The recommended conditions are at temperatures from 15 to 35°C and humidity between 35 and 65%. To ensure safety and avoid damage to the product, the pallets should not be stacked more than three layers high, when the pallets are stacked in 2 or 3 layers, special care should be taken to move the top pallet correctly and smoothly.
