Details
Fiberglass Pipe Wrap Tissue
Fiberglass pipe wrapping tissue is used as an excellent substrate for anti-corrosion wrapping on steel pipelines buried underground. It is characterized by high tensile strength, good flexibility, uniform thickness, solvent resistant, moisture resistance, and flame retardant. It is well compatible with impregnating bitumen and coal tar enamel.
The oil or gas pipelines wrapped by S-PM tissue can widely improve capabilities against leakage and aggressive media in the environment so that the cost for maintenance can be minimized significantly. So it is excellent materials for oil or gas pipe wrapped by S-PM tissue.
Product Feature
● Excellent fiber distribtution
● Excellent tensile strength
● Good tear strength
● Good flexibility
● Solvent/Moisture/Flame Leaking resistance
Specs & Technical
|
Product Code |
Areal Weight (g/m2) |
Binder Content (%) |
Liner Density of Reinforcement Yarn (Tex) |
Yarn Distance (mm) |
Thickness (mm) |
Tensile Strength in Warp (N/5cm) |
Tensile Strength in Weft (N/5cm) |
|
S-PM-50/30 |
50 |
16 |
34-68 |
30 |
0.55 |
≥200 |
≥75 |
|
S-PM-50/30 |
60 |
16 |
34-68 |
30 |
0.63 |
≥180 |
≥100 |
|
S-PM-50/30 |
90 |
16 |
34-68 |
30 |
0.78 |
≥280 |
≥200 |
Applications

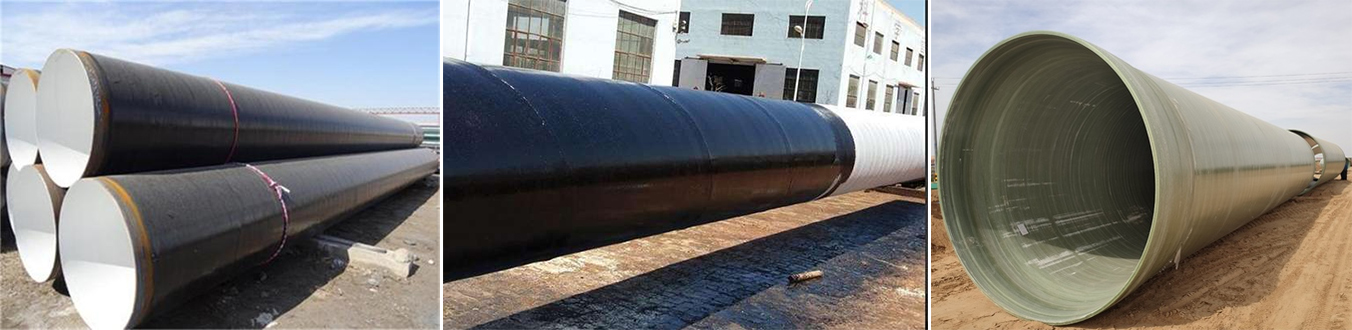

Fiberglass pipe wrapping tissue are mainly used as basic material for anti-corrosion wrapping on steel pipelines that buried underground for oil or gas transportation. The pipelines wrapped with fiberglass wrapping tissue can obviously improve capabilities against leakage and aggressive media in the environment. Moreover, the cost of maintenance can be minimized significantly. Thus it is an excellent substrate for oil and gas pipes. Life time of pile-line be prolonged up to 50-60 years
